VLX 500 Sliding Window

VLX 500 Sliding Window in Miami, FL | Hale Windows Miami

The VLX 500 is a high-performance aluminum sliding window built for homeowners who want clean sightlines, smooth operation, and glass they can spec for hurricane season. It’s a slim-profile system engineered around a 1.97-inch frame that maximizes glass area while keeping the frame nearly invisible. Hale Windows Miami sells and installs this series as an authorized ViewLux partner, which means you get direct access to factory specs, correct installation per AAMA standards, and warranty coverage that actually holds up if you need it. We’ve installed this window in homes across Miami, Miami Beach, Coral Gables, Kendall, Doral, and Pinecrest. For pricing and availability, call us at (786) 442-1123.

Call (786) 442-1123

Product Overview – VLX 500 Sliding Window

The VLX 500 is one of those windows that proves aluminum doesn’t have to look bulky or industrial. The frame profile sits at just under two inches wide, which is narrow enough to disappear into an opening but deep enough to hold a serious glass unit. Sash panels ride on precision tracks that glide without the sticky drag you feel on older sliding windows. That’s the first thing people notice when they try it in our showroom: the panel moves with one hand, stops where you stop it, and doesn’t rattle when it’s locked.

This is the series we recommend most often for mid-century ranch homes in areas like Westchester and Shenandoah, and for modern concrete builds in Edgewater or Wynwood. Buyers want visibility. The VLX 500 delivers more glass and less metal per square foot than most systems in its weight class. It comes in two track configurations: the 2-track layout is a straightforward single-slide setup, while the 3-track lets you run two operating panels on independent rails, so you can leave different sections open depending on how the breeze moves through the house. That’s a real consideration in Miami, where cross-ventilation matters almost year-round.

Materials matter here. The frame is extruded aluminum with a 0.079-inch wall thickness. That’s thicker than what you’d find on most builder-grade sliding windows, and it shows up in how square the corners stay during installation and how well the sash resists racking under wind load. The hardware is stainless, the rollers are sealed, and every joint is designed to be serviced, not thrown away. We sell it in both 2-track and 3-track builds, depending on how wide your opening is and how much ventilation you want.

Technical Specifications

Here are the numbers that matter for anyone comparing this window against other aluminum sliders:

• Frame wall thickness: 0.079 inches, heavy enough to hold its shape under Miami sun and wind
• Profile width: 1.97 inches, a slim line that keeps sightlines open
• Track options: 2-track (one moving panel) or 3-track (two moving panels on separate rails)
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated option available)
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or standard sliding screen

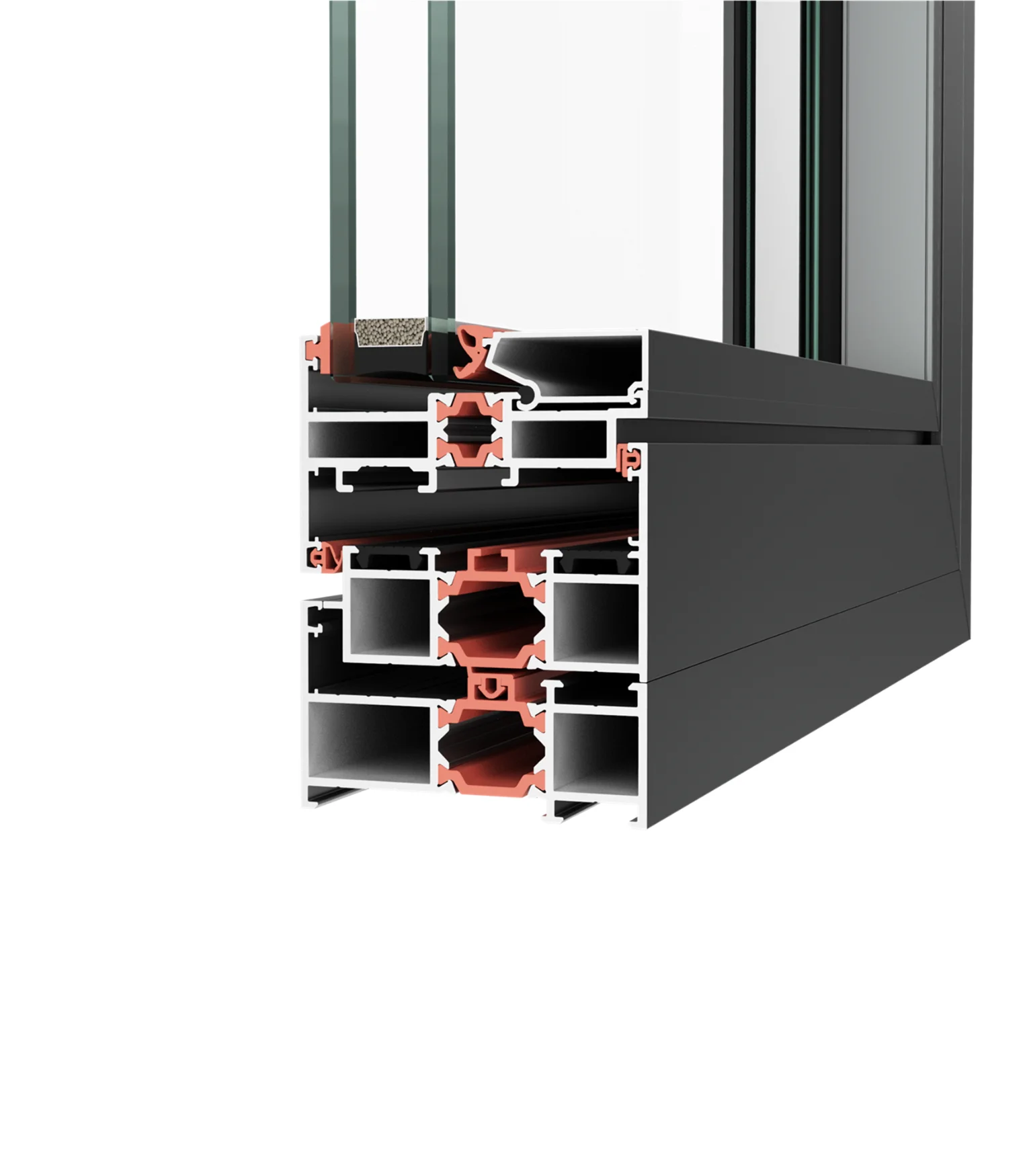

• Thermal break: Yes, polyamide strip separates interior and exterior aluminum
• Installation standard: AAMA 2400/2410 compliant
• Perimeter sealing: AAMA 812 certified low-expansion foam at every joint

Glass thickness and weight vary by panel size and whether you choose laminated impact glass. Our team specs every order against your exact opening dimensions before it goes to the factory, so there’s no guessing on site.

Performance Features

Thermal Efficiency – The VLX 500 uses a polyamide thermal break that interrupts the heat path between the outside and inside frame. On a Miami afternoon when the sun is hitting the west wall, that break keeps the interior frame from turning into a radiator. NFRC-rated glass packages let us hit the performance numbers your project calls for.

Acoustic Performance – If you live near SW 8th Street, the Palmetto, or anywhere with constant traffic, laminated glass makes a measurable difference. Paired with tight perimeter seals, the VLX 500 drops ambient noise noticeably. We’ve had customers in Little Havana and Brickell tell us the difference was immediate the first night.

Airtightness & Weather Seal – Every perimeter joint gets AAMA 812 low-expansion foam and a full silicone bead. Air infiltration is the enemy of both AC bills and humidity control, and this sequence closes the gaps that let both in. You’ll feel it in the monthly FPL statement during July and August.

Waterproofing – Miami gets sideways rain. The VLX 500’s track and weep system is designed to drain faster than water can accumulate, and our install team tests every unit with a full soak after setting it. No exceptions. A window that passes a heavy water test on install day will handle anything the wet season throws at it.

Wind Resistance – The laminated impact glass option is the one we point people toward in coastal zip codes and anywhere east of US-1. Combined with the 0.079-inch wall frame and stainless hardware, the VLX 500 is wind-load rated against the pressures Miami-Dade expects from a serious storm.

Security & Hardware – The locking mechanism is a multi-point design that engages at the meeting rail, not a single flimsy latch. Sliding windows are an easy entry point for burglars when the locks are weak; this hardware makes prying the sash substantially harder. Tempered glass adds another layer of resistance against forced entry.

Color & Glass Options

The VLX 500 comes in six finishes, and each one changes the character of the window. Premium Black reads modern and sharp, and it’s the most-requested finish for homes in the Miami Design District and newer builds in Midtown. Pure White works on coastal and traditional homes where you want the frame to disappear into the wall. Anodized Silver gives you that raw, architectural aluminum look that’s still the standard for high-rise condos along Brickell Avenue. Bronze has a warmer aged-metal tone that pairs well with travertine and cream stucco. Champagne is softer than silver, with a hint of warmth that suits tropical modern homes in Coconut Grove. Teak Wood is our answer for HOAs that require wood-toned windows or for anyone who wants the maintenance profile of aluminum with the visual warmth of timber.

Glass selection depends on where the window faces and what’s on the other side of it. Clear is the default for maximum light. Frosted makes sense for bathrooms and any ground-floor window facing a sidewalk in neighborhoods like Coral Way. Low-E cuts solar heat gain without darkening the view, which keeps AC costs down on sun-facing walls. Tempered glass is code-required in many locations and shatters into safe chunks if broken. Laminated glass is the impact-rated option that holds together when struck, and it’s the one we recommend for storm protection anywhere east of US-1 in Miami.

Installation by Hale Windows Miami in Miami

Here’s the part most websites skip: a window is only as good as the day it was installed. Frame specs don’t matter if the unit is racked, shimmed wrong, or sealed with whatever foam was left in the truck. Our installation crew works exclusively on window and door projects, and every VLX 500 goes in the same way.

We start with a pre-install inspection of the rough opening. In older Miami homes – think 1940s Coral Gables bungalows or 1960s split-levels in West Miami – openings are rarely square, and the framing has usually settled. We measure, note any issues, and correct them before the window is anywhere near the opening. Then the frame is set level, plumb, and square using shims at every anchor point, never just the corners. AAMA 2400/2410 compliance isn’t a sticker for us; it’s the minimum bar for every install we do.

Perimeter sealing uses AAMA 812 low-expansion polyurethane foam around the full perimeter, followed by continuous silicone tooling on the exterior. This is the step that prevents air leaks, water intrusion, and the fogged-glass misting that comes from moisture trapped inside the frame. After the unit is sealed, we run a full water test on the exterior and confirm drainage through the track system. Then we recheck operation, lock alignment, and clean the glass.

One thing worth being direct about: installing this window yourself or hiring a handyman will void the manufacturer warranty. ViewLux requires installation by an authorized partner for the warranty to remain valid, and Hale Windows Miami is authorized in Miami. The warranty covers materials and workmanship for the life of the product when it’s installed to spec. If that matters to you, call us at (786) 442-1123 before you buy a unit online and try to figure out the install later.

Frequently Asked Questions – VLX 500 Sliding Window

Get a Quote – VLX 500 Sliding Window in Miami

If you’re replacing sliders, building a new home, or renovating a condo in Miami, we’ll give you a written, line-item quote on the VLX 500 with no change orders later. Free on-site measurement, honest lead times, and installation done to AAMA spec. Call Hale Windows Miami at (786) 442-1123 to schedule your estimate.

Written by the team at Hale Windows Miami, serving Miami, FL since 2010.
