VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Miami, FL | Hale Windows Miami

The VLX 100 bifold door isn’t a patio door that happens to fold. It’s a wall that disappears. When fully opened, panels stack tightly to one side and your living room, kitchen, or dining area flows straight into your Miami terrace or pool deck without a sill to trip over or a post to look around. We’re Hale Windows Miami, an authorized ViewLux installation partner at (786) 442-1123, and we’ve been putting these doors into Miami homes long enough to know exactly where they fail when installed wrong, and exactly how to install them so they don’t. If you’re researching this specific product, you’ve already done the hard part. Call us for a free on-site measurement and a line-item quote.

Product Overview – VLX 100 Bifold / Folding Door

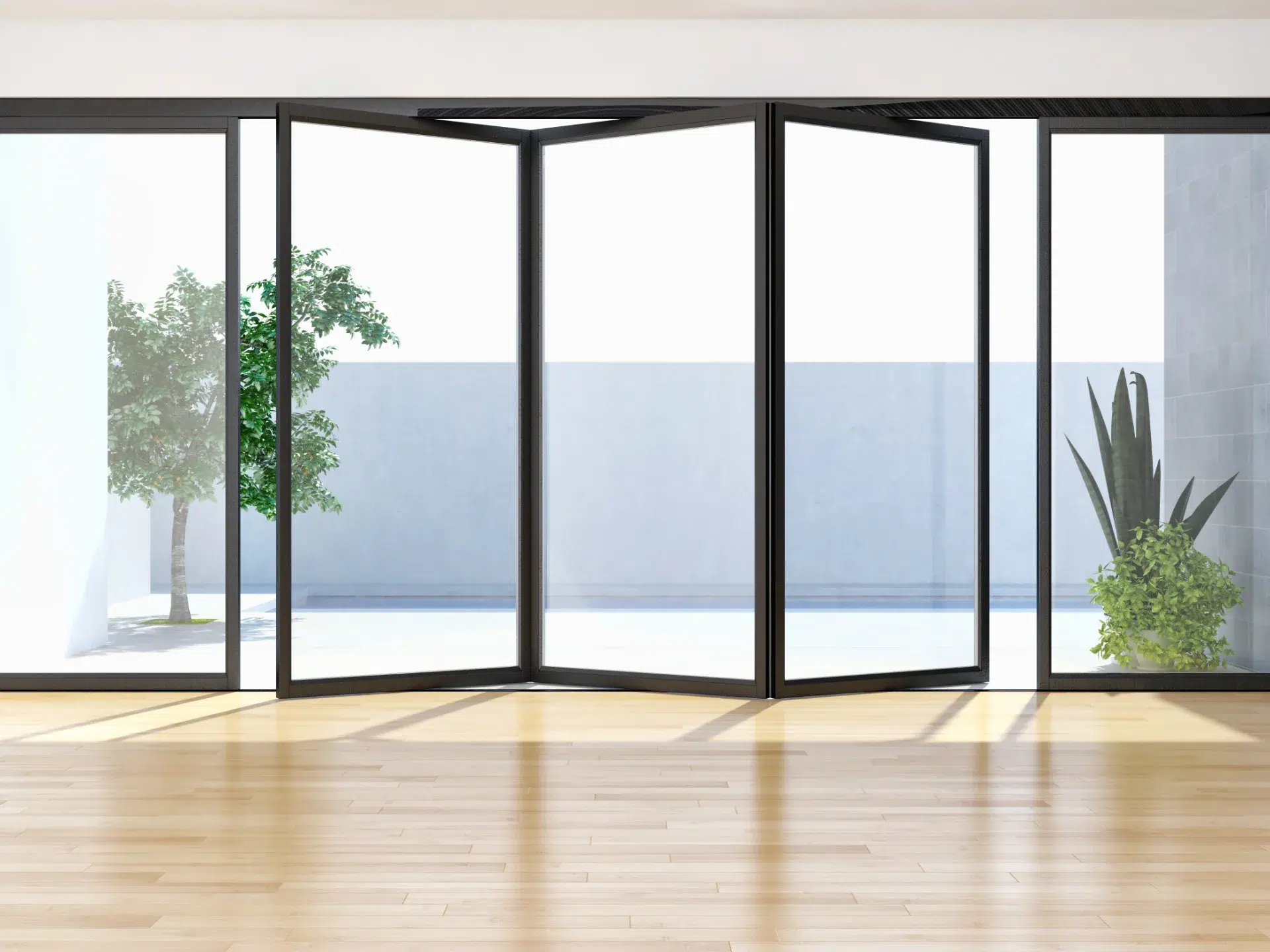

The VLX 100 is an accordion-style aluminum bifold door designed for openings up to 20 feet wide, with panels that fold and stack against the wall to create a wall-to-wall, uninterrupted opening. That’s the whole idea: seamless indoor-outdoor living, which in Miami isn’t a luxury feature, it’s how people actually live from November through April.

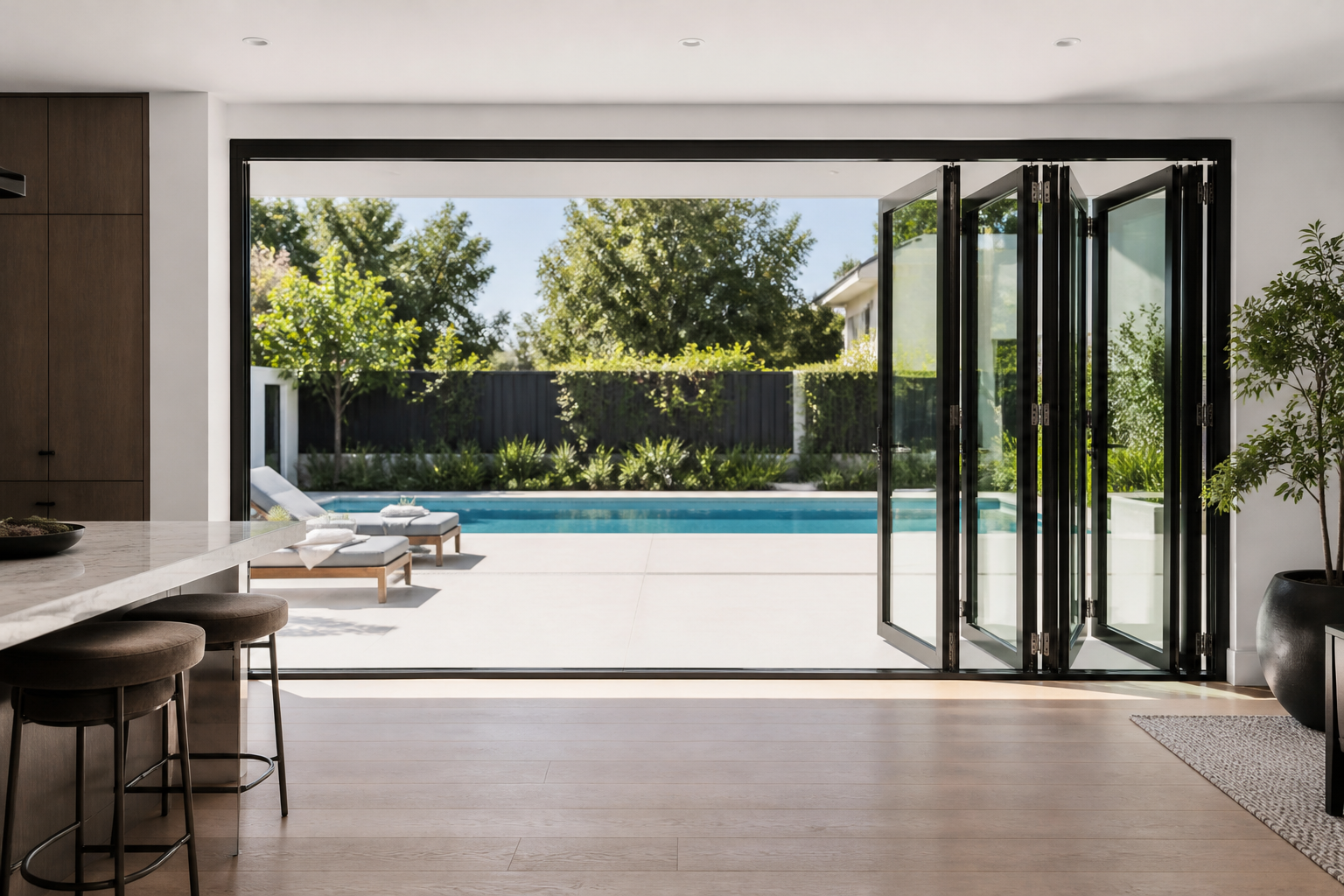

Why buyers in neighborhoods like Coconut Grove, Coral Gables, Pinecrest, and Key Biscayne choose this series over a standard sliding door comes down to one thing. A sliding door always leaves half the opening covered by glass. The VLX 100 leaves the entire opening clear when you want it. Fold it open for a dinner party and the dining table extends onto the lanai without a threshold interrupting the floor. Fold it closed and you have a fully sealed, impact-rated glass wall.

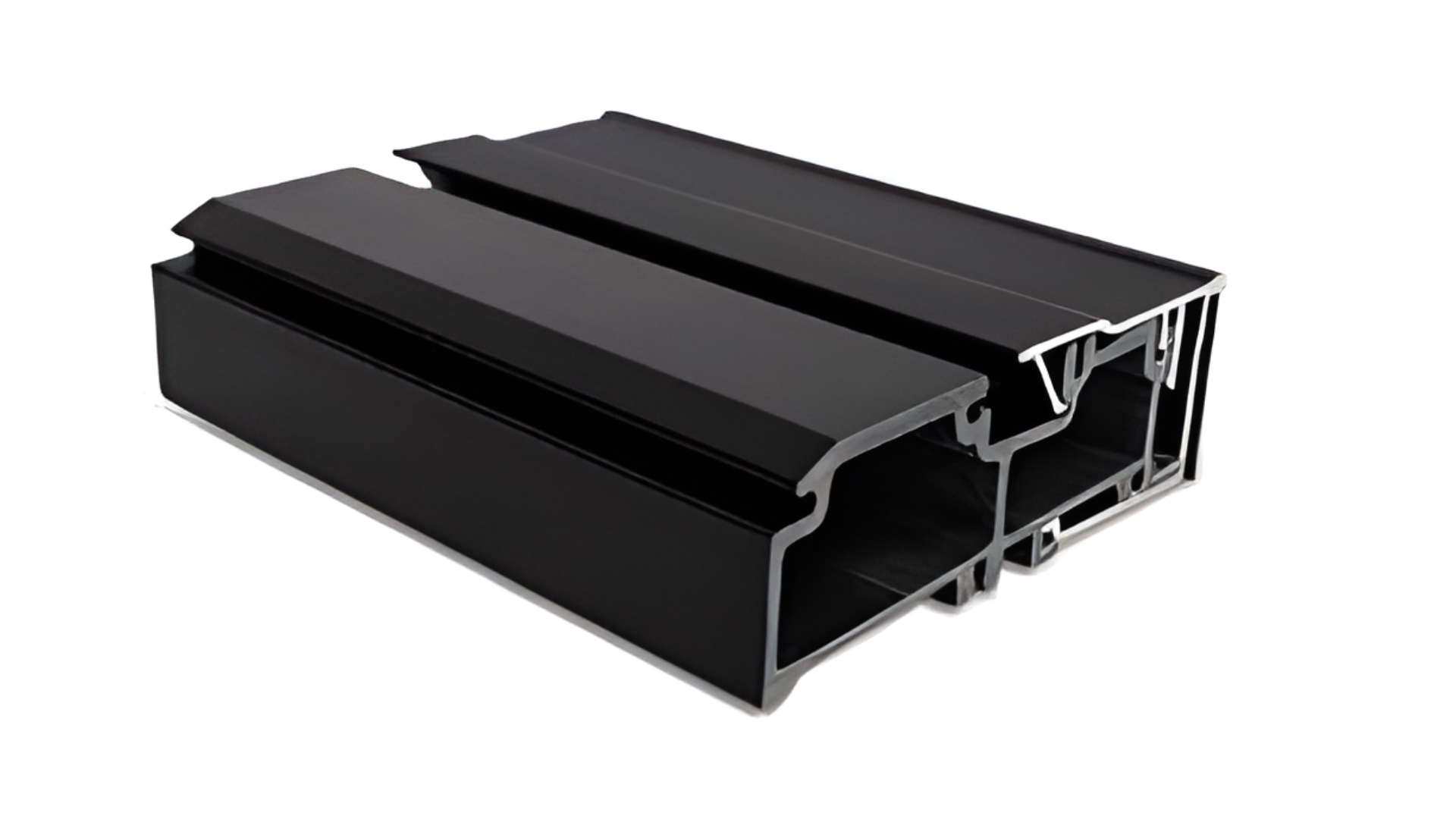

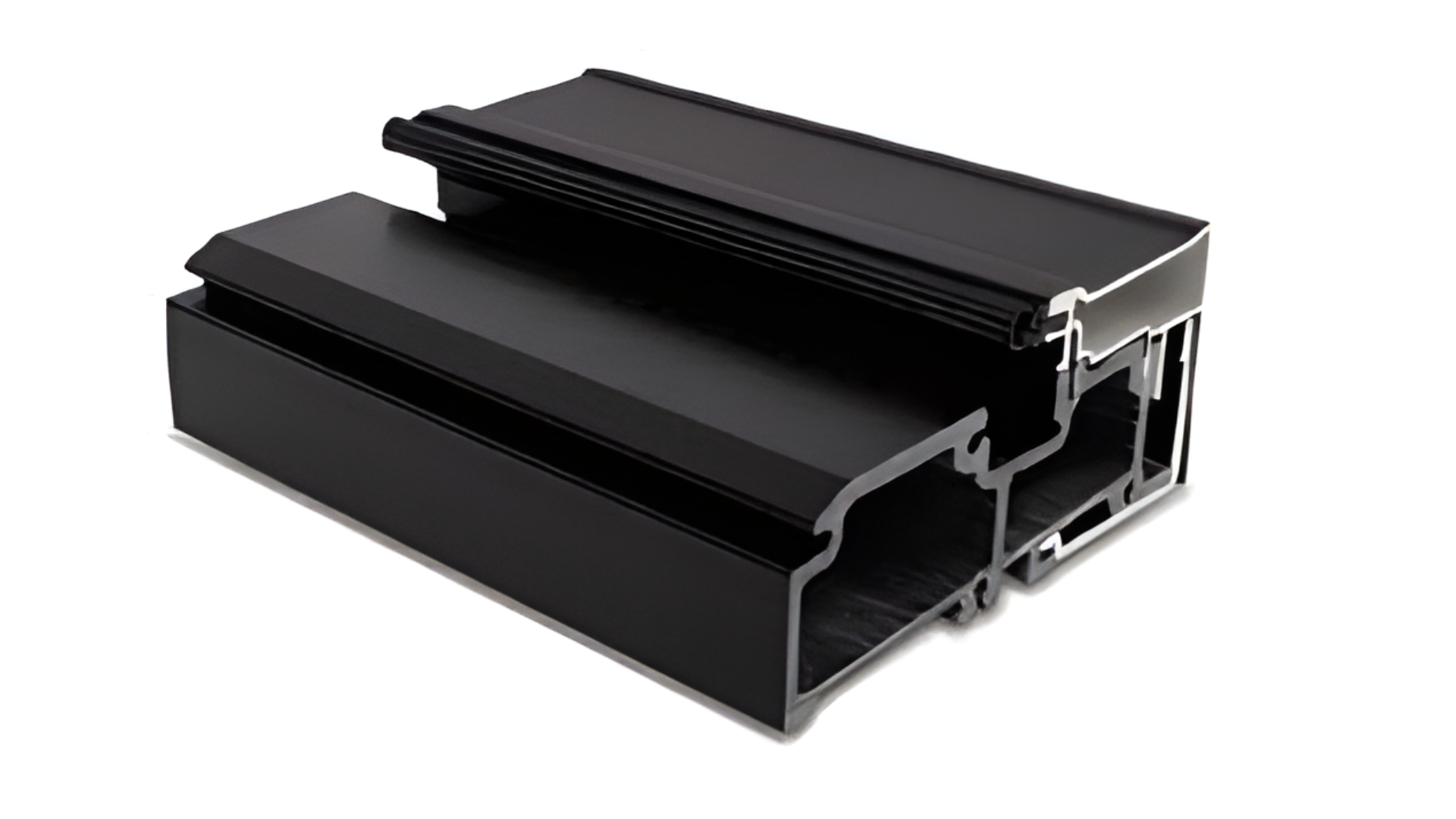

The engineering underneath matters more than the look. Each panel frame is extruded aluminum with a 2.56-inch profile width and a substantial 0.098-inch wall thickness. That’s the structural backbone that lets a 20-foot span operate smoothly panel after panel, year after year in salt air. Add the thermal break, and you get a frame that doesn’t turn into a heat conductor in August. Miami salt, humidity, and tropical downpours punish cheap hardware, and ViewLux builds this series to shrug all three off. We sell and install the VLX 100 because it holds up here.

Technical Specifications

Here’s what you’re actually getting, in plain numbers:

• Frame profile width: 2.56 inches, with panel wall thickness of 0.098 inches
• Maximum continuous opening: up to 20 feet wide
• Panel configurations: 2-panel, 3-panel, 4-panel, 5-panel, or 6-panel track setups
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Glass types: Clear, Low-E, Tempered, Laminated (including impact-rated), Gray Tint, Black Tint
• Screen options: Retractable screen or no screen
• Performance standards: NFRC-rated thermal break, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealant

Not every opening works with every panel count. A 12-foot opening might be four 3-foot panels. A 20-foot opening might need five or six panels so each leaf stays light enough to fold easily. We’ll walk you through what fits your wall during the free measurement, and the quote includes the exact panel breakdown.

Performance Features

Thermal Efficiency. The VLX 100 uses a thermal break inside the aluminum frame, which interrupts heat transfer through the metal itself. In Miami’s August sun, an unbroken aluminum frame gets hot enough to warm the air touching it indoors. The thermal break stops that, and NFRC-rated performance numbers back up the difference. Pair the frame with Low-E glass and your south-facing living room stops feeling like a greenhouse at 3 p.m.

Acoustic Performance. If you live anywhere near US-1, the Dolphin Expressway, or a busy street in Brickell or Edgewater, sound control rating matters as much as energy numbers. Laminated glass is the single biggest improvement for noise, because the PVB interlayer deadens mid-range sound waves, which is where most traffic and human noise lives. A laminated VLX 100 in a street-facing opening changes the whole room.

Airtightness & Weather Seal. The panels interlock with continuous compression gaskets, and we install every perimeter joint using AAMA 812-compliant low-expansion foam sealant. That’s the stuff that closes micro-gaps around the frame so air doesn’t sneak through the rough opening. In Miami’s humidity, an airtight frame is also what keeps condensation off the glass on muggy mornings.

Waterproofing. Water is the door’s biggest enemy in South Florida, and the VLX 100 defends with interlocking panel joints, a sloped sill that directs water outward, and weather-stripping that stays flexible over years of UV exposure. The installation matters here too: AAMA 2400/2410 standards exist precisely because a level, properly flashed opening is what makes the waterproofing system work. We set every door level, plumb, and square before the final flashing goes on.

Wind Resistance. Miami-Dade building codes are notoriously demanding about wind loads, and with good reason. The VLX 100 is wind-load rated for local climate requirements, and pairing it with impact-rated laminated glass gives you a door that doesn’t need shutters to meet code in most applications. We’ll confirm the specific rating needed for your home’s location and elevation during the quote.

Security & Hardware. The folding panels ride on a recessed floor track with stainless steel roller carriages, and the multi-point locking hardware secures the lead panel to both the header and the floor. When the door is closed and locked, it resists forced entry the way a hinged exterior door does. Folding doors have a reputation for being flimsy. This one isn’t.

Color & Glass Options

There are six frame finishes. Premium Black and Anodized Silver are the two most common choices in Miami’s modern and contemporary builds, especially in Wynwood, Edgewater, and new construction throughout the city. Black frames against white walls photograph beautifully and frame the outdoor view like a movie screen. Pure White suits Miami Beach condos and coastal homes where the palette runs light and bright. Bronze and Champagne have a warm, slightly metallic depth that reads as high-end without being flashy. Teak Wood is a textured wood-look finish that gives you the appearance of wood with aluminum’s rot-proof longevity, and it’s the one to pick for a traditional house or anything trying to blend into a tropical landscape.

Glass selection depends on what you’re solving for. Clear tempered gives you maximum visible light at the lowest cost. Low-E is the energy play, cutting heat gain while staying mostly neutral to the eye. Laminated is the safety and security choice, and when impact-rated, the hurricane-code choice. Gray Tint and Black Tint cut glare and add drama, though they darken the view, which is exactly why some buyers choose them for west-facing walls that get brutal afternoon sun. Many of our clients combine Low-E with a light tint.

Installation by Hale Windows Miami in Miami

The door is only as good as the opening it’s set into. That sounds obvious, but in Miami we’ve seen plenty of high-end bifold doors fail early because the installer didn’t follow AAMA 2400/2410. A door that’s a quarter-inch out of level will bind, drag, or leak within the first year, and here’s the part most homeowners don’t know: improper installation voids the manufacturer warranty. It doesn’t matter how good the VLX 100 is if the opening wasn’t prepped right.

Our process starts with a pre-install inspection of the rough opening and the structural header above it. A 20-foot opening carries real load, and the header has to be engineered for the span. We verify that before we order anything. Then we set the frame level, plumb, and square using shims and a laser, not eyeballs. Every perimeter joint gets AAMA 812-compliant low-expansion foam sealant. Flashing goes on top of the opening, not just around it. Panels go in, rollers are adjusted, and hardware is tuned so the door folds with one hand.

Then we do a water test with a hose and a checklist, clean the job site, and walk you through operating and maintaining the door before we leave. We’re based in Miami and every install we do here is built for salt air, hurricane season, and monsoon afternoons.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?

The VLX 100 typically ships from ViewLux in 4 – 8 weeks depending on the glass type and finish you choose, and custom sizes or impact-rated laminated glass can add time. We confirm the current lead time when you place your order with Hale Windows Miami. Call (786) 442-1123 and we’ll give you a real number, not an estimate.

Does the VLX 100 qualify for energy tax credits?

The VLX 100 with Low-E glass and the thermal break can qualify under the federal energy-efficiency tax credit guidelines, which cover specific NFRC-rated products. Whether your exact configuration qualifies depends on the glass package and the U-factor it achieves. We’ll tell you when we quote the door what the numbers are and whether this one makes the cut.

What warranty comes with the Bifold / Folding Door?

ViewLux provides a manufacturer warranty on the frame, glass, and hardware, and the specifics depend on glass type: laminated and insulated glass carry different coverage than standard tempered. Just as important, the warranty is only valid when an authorized partner like Hale Windows Miami installs per AAMA 2400/2410. We handle the warranty paperwork and any service claims for you.

Can I customize the size of the VLX 100?

Yes. The VLX 100 is not a stock product; each one is fabricated to your opening, up to a 20-foot maximum span, with 2, 3, 4, 5, or 6 panel configurations to fit the width. Panel sizes, swing direction, and whether panels stack left, right, or split to both sides are all specified when you order. We measure, confirm the configuration, and you approve it before it goes to production.

How do I maintain aluminum frames in Miami’s climate?

Wash the frames and glass with mild soap and water every few months, and more often if you live within a mile of the ocean, since salt film builds up and can etch finishes over time. Check the track for sand and debris, especially after beach days or storms. Lubricate the rollers and hinges once a year with a dry silicone spray. That’s the entire routine, and it keeps a VLX 100 operating like new for decades.

Get a Quote – VLX 100 Bifold / Folding Door in Miami

You’ve read this far because you’re serious about this door. The next step is a measurement. We’ll come out to your home anywhere in Miami or the surrounding area, confirm the opening size, walk you through panel counts and glass options, and give you a written quote with no surprises later. Call Hale Windows Miami at (786) 442-1123 to schedule your free on-site measurement.

Written by the team at Hale Windows Miami, authorized ViewLux installation partner serving Miami, FL. Call (786) 442-1123 for a free quote.
